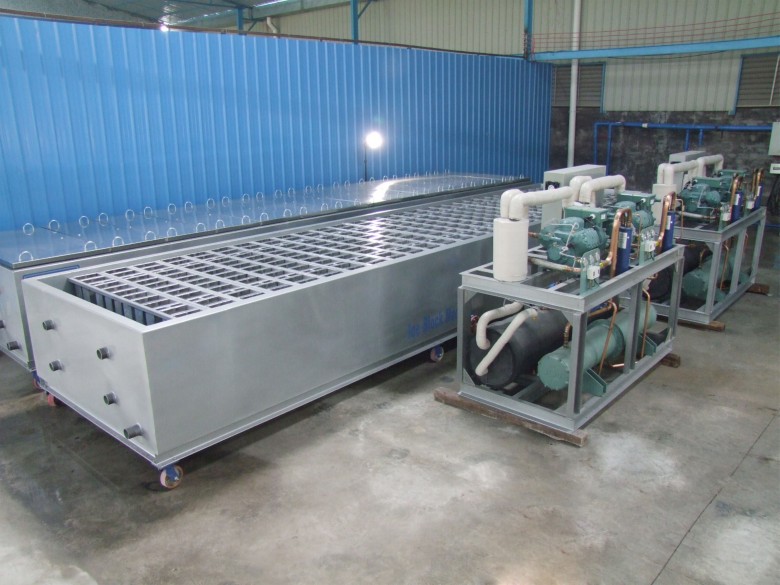

Block ice machine-KB Series:
Kingman KB Series Block Ice Machines are new type of machines with high-effective and stable production, widely applied to Africa, Middle East and Oceania. This machinery unit adopts an integrated design, easy to install, you can use it directly after connecting the power and water pipes. All dimensions of equipment are designed according to International Standard Container size or design the containerized machine, very convenient for transportation and operation.
Block ice size: 5kg/piece, 10kg/piece, 15kg/piece, 20kg/piece, 25kg/piece, also we can design the block ice according to customers’ needs.
- Freeing time: 4~8hours.
- Capacity: 1tons to 150 tons per day.
- The material for water tank is SUS304 stainless steel, low maintenance, high capacity.
Product Features:
- Block ice size: 5kg/piece, 10kg/piece, 15kg/piece, 20kg/piece, 25kg/piece, also we can design the block ice according to customers’ needs.
- Material: adopt stainless steel with special processed;
- Reasonable and separated design for the structure, save space, easy to install.
- Easy installation and operation, module structure, easy to move and install, meanwhile, easy to harvest ice.
- All dimensions of ice block machine are designed according to international standard size of the container, very easy and convenient for transportation.
KB Series Block Ice machines
Model | Capacity(Ton/24Hrs) | Compressor Power (KW) |
Supply power | Dimension(Length*Width* Height)(mm) | ||||
Voltage/Hz/Phase | ||||||||
KB10 | 1 | 3.8 | 380/230 | 50/60 | 3 | 3050 | 1330 | 810 |
KB20 | 2 | 7.5 | 380/230 | 50/60 | 3 | 1940 | 1410 | 965 |
KB30 | 3 | 11.3 | 380/230 | 50/60 | 3 | 2630 | 1410 | 1065 |
KB40 | 4 | 15.0 | 380/230 | 50/60 | 3 | 3600 | 1450 | 1100 |
KB50 | 5 | 18.8 | 380/230 | 50/60 | 3 | 4250 | 1470 | 1100 |
KB60 | 6 | 22.5 | 380/230 | 50/60 | 3 | 4800 | 1470 | 1100 |
KB80 | 8 | 30.0 | 380/230 | 50/60 | 3 | 5550 | 1680 | 1200 |
KB100 | 10 | 37.5 | 380/230 | 50/60 | 3 | 6080 | 1700 | 1300 |
Refrigerant: R22 or R404a;
Cooling way: Water cooling system & Air cooling system;
Standard working conditions: input water temp: 16 ℃, Ambient temp: 25 ℃, Evaporating temp: -10℃, Condensation temp: 40 ℃.
Supply power: 380V, 50Hz/60Hz, 3P or 220V~ 240V, 60Hz, 3P
Model and specifications can be subject to change without notice.
Directly Evaporated Block Ice Machines-KDB Series
Model | Capacity | Compressor Power | Supply Power | Outer Dimension(MM) | ||||
No. | Tons/24H | (KW) | Voltage | Hz | Phase | L | W | H |
KDB10 | 1 | 3 | 380/230 | 50/60 | 3 | 3000 | 1550 | 1350 |
KDB20 | 2 | 6 | 380/230 | 50/60 | 3 | 5000 | 1800 | 1400 |
Model and specifications can be subject to change without notice.
Containerized Block Ice Machines-KCB Series
All dimensions of equipments are designed according to International Standard Container size or design the containerized machine, very convenient for transportation and operation.
1. Block Ice Machines are all installed well in the container. It is very easy and convenient for transportation.
2. We adopt integration refrigeration system.
3. ISO Container
